Gearless Pressure Gauge

Feature

Gearless Pressure Gauge uses no geared mechanism and is designed to withstand vibration and pulsation with very high durability. No need to fill the case with glycerin.

【Standard Specification】
Case Protection: IP65
Case Material : Aluminum, Stainless Steel
Dial: 100mm
Maximum Temperature: -65~120℃
Ambient Temperature: -50~70℃
Accuracy: ±1.6%F.S.

Target Fields

Power, Oil & Gas, Refinery, Petrochemical, etc.
Pumps, Compressors, Motors, Boilers, Generators, etc.

Model / Specifications

Products List

Direct Mount

GB-SUNA　Direct Bottom （IP65）,GB-SUNS　Direct Bottom （IP65）

  • GB-SUNA
  • GB-SUNS
GB-SUNA

Model　：GB-SUNA　Direct Bottom （IP65）
Case ：Aluminum (100mm)

GB-SUNA
GB-SUNS

Model　：GB-SUNS　Direct Bottom （IP65）
Case ：Stainless Steel (100mm)

GB-SUNS

Surface Mount

GB-SUSA　Surface Mount （IP65）,GB-SUSS　Surface Mount (IP65）

  • GB-SUSA
  • GB-SUSS
GB-SUSA

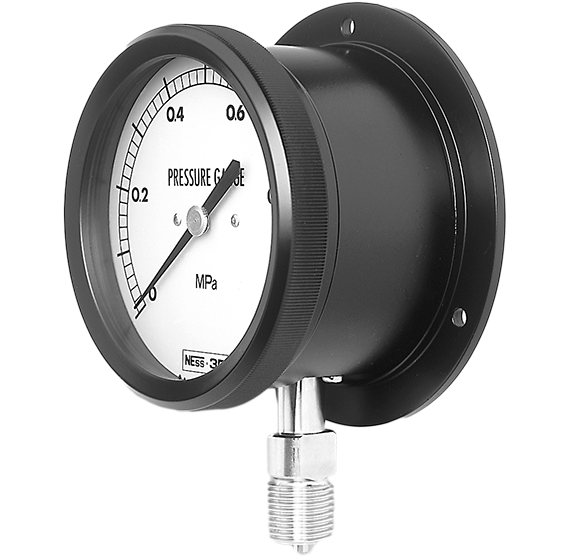

型式　：GB-SUSA　Surface Mount （IP65）
Case ：Aluminum (100mm)

GB-SUSA
GB-SUSS

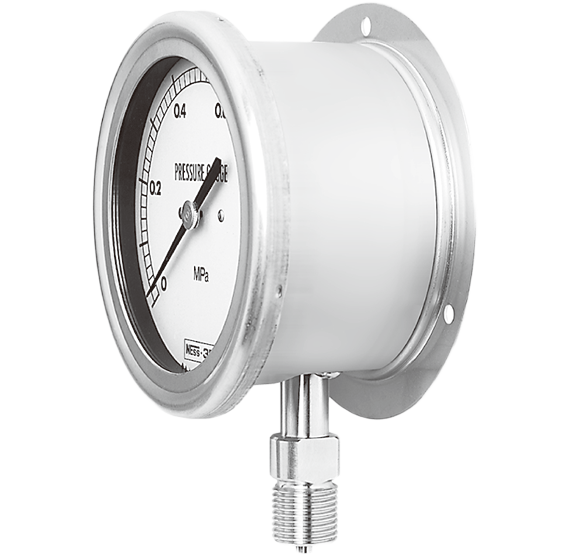

Model　：GB-SUSS　Surface Mount (IP65）
Case ：Stainless Steel (100mm)

GB-SUSS

Panel Mount

GB-SBPA　Panel Mount （IP65）,GB-SBBS　Panel / Bracket Mount （IP65）

  • GB-SBPA
  • GB-SBBS
GB-SBPA

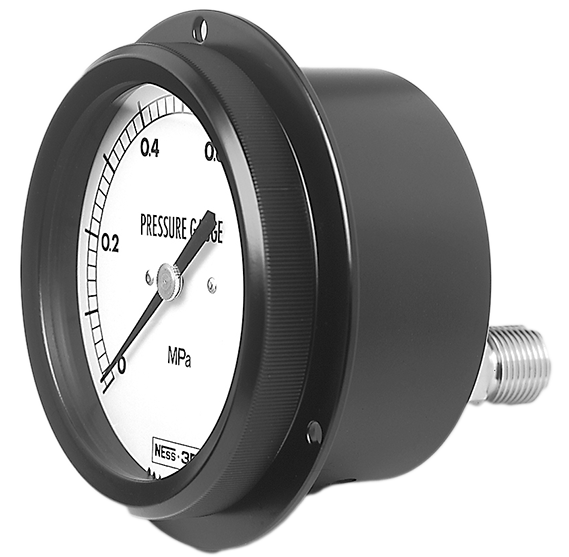

Model　：GB-SBPA　Panel Mount （IP65）
Case ：Aluminum (100mm)

GB-SBPA
GB-SBBS

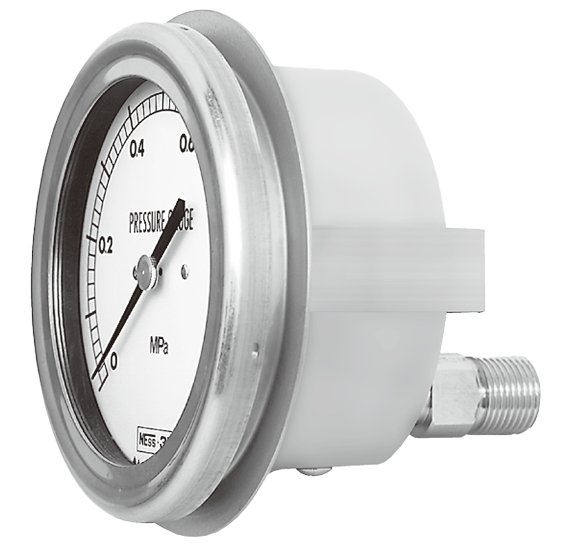

Model　：GB-SBBS　Panel / Bracket Mount （IP65）
Case ：Stainless Steel (100mm)

GB-SBBS
